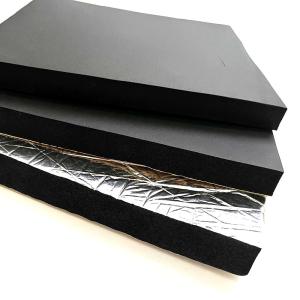

Self Adhesive EPDM Cellular Rubber Aluminum Foil Sticky Single Sided Foam
EPDM Spong Rubber is one kind of rubber and plastic foaming products,It has open cell pore and closed cell pore. The internal cells of EPDM closed cell pore foam material are separated by cell wall membranes, they don’t link together, belonging to independent cell structure, and mainly are the smaller bubble hole shape or extremely small micropore. The Internal cells of EPDM open cell pore foam material are link together with each other and also link with the outer skin, belongs to non-independent cell structure, and mainly are larger bubble holes or rough holes.
Specification:
EPDM(Closed cell)Physical Properties:
| Name&Model | Color | Density
(kg/m³) | Hardness
(Shore C°) | Tensile Strength
(Kpa) | Elongation
(%) | Compression Deformation
(%) | Tear Strength
(kn/m) | Size(mm) | Remarks |
| EPDM-9016 | Black | 190±15 | 25°±5 | ≥500 | ≥130 | ≤40 | ≥3.0 | 950*1900*40 | |
| EPDM-9015 | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤45 | ≥2.0 | 1000*2000*50 | |
| EPDM-9010 | Black | 130±15 | 10°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-9008 | Black | 110±15 | 8°±3 | ≥350 | ≥120 | ≤35 | ≥1.8 | 1000*2000*50 | |
| EPDM-WS | Black | 150±15 | 15°±5 | ≥400 | ≥120 | ≤40 | ≥2.0 | 1000*2000*50 | Sulfur free |
| EPDM-GBZ | Black | 250-500 | 30°-50° | ≥800 | ≥130 | ≤20 | ≥5.0 | 900*1800*35 | High density |
| EPDM-GYD | Black | 600-700 | 50°-75° | ≥1200 | ≥90 | ≤10 | ≥8.0 | 600*1200*30 | High hardness |
| EPDM-SMP | Black | 300±25 | 18°±5 | ≥500 | ≥150 | ≤25 | ≥2.0 | 400*500*568 | Double sided crust |
EPDM (Open cell) Physical Property:
| Name&Model | Color | Density
(kg/m³) | Tensile Strength
(Kpa) | Elongation
(%) | Compression Deformation
(%) | Tear Strength
(kn/m) | Size(mm) | Remarks |
| EPDM-10 | Black/Red/White | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | |
| EPDM-10Z | Black/Red | 100±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*60 | Fire retardant |
| EPDM-20 | Black | 85±15 | ≥100 | ≥200 | ≤3.1 | ≥0.5 | 1000*2000*30 | |
The difference between EPDM ,NBR and CR rubber foam:
| Comparison of rubber foam performance parameters |
| Performance | EPDM Rubber Foam | NBR Rubber Foam | CR Rubber Foam |
| Aging resistance | good | poor | good |
| electrical insulation | very good | poor | poor |
| preservative | good | general | good |
| Impact elasticity | good | general | -- |
| Adhesion properties | poor | good | -- |
| Oil resistance | no | very good | good |
| Wear resistance | good | good | -- |
| Heat resistance | very good | good | good |
| Cold resistance | very good | poor | poor |
| Ozone resistance | good | -- | good |
| Weather resistance | very good | general | very good |
| Flame resistance | no | -- | good |
| Acid resistance | good | good | general |
| Alkali resistance | good | good | good |
FAQ:
Q1:What’s the kinds of Foam Products you can provide ?
We are your one stop foam products supplier. We can provide IXPE foam, XLPE foam, EVA foam,EPDM foam,NBR foam,CR foam,PU foam,MPP foam,MTPU foam, PVDF foam and foam products(foam camping mat,foam floating mat, foam wallpaper, car floor mat)
Q2:How can I place an order?
1) Tell us the size details and quantity you want to order.
2) We will make PI for you.
3) Checking PI and confirm it for us, we will arrange the production ASAP when the prepayment received.
4) We will take photos for you to confirm and then deliver the goods soon after the balance.
5) Send the Customs Clearance Documents or tracking number to you and track the goods for you until you get it.
Q3:How to get samples ?
Send enquiry to cissy@eco-polyfoam.com, with your details of the foams need, we will check reply in 24 hour
